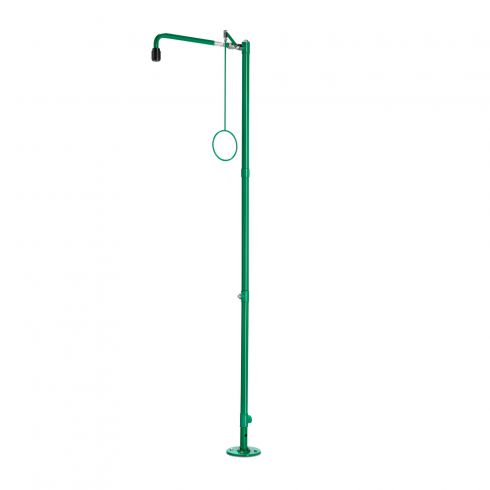

B-Safety BR830085
ClassicLine body safety shower, floor mount

Emergency Shower

The B-SAFETY ClassicLine series of body safety showers are made of high-quality materials and are just as suitable for use in laboratories and research as they are for harsh industrial applications. B-SAFETY's green chemical-resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only complies with ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely free of limescale and maintenance, and very robust and corrosion-resistant. The limited, uniform and, above all, soft water jet is optimized for rinsing off chemicals on the skin.

Specification

  • Material:Stainless Steel, plastic
  • Color: green, black
  • Total height: 2330 mm
  • Projection: 630 mm
  • Operating pressure: 1,5 bis 3 bar
  • Flow rate: 50 L/min
  • Water inlet: 1 1/4-inch female
  • Standards conformity: DIN EN 15154-1:2006, DIN EN 15154-5:2019, ANSI Z358.1-2014
  • Registrations: DIN-DVGW, NW-0416CL0425, GOST-R, Certificate No. 061563

Order information

Order noModel noDescription
BR830085BR830085B-Safety ClassicLine body safety shower, floor mount

Accessories

Bestell Nr.Beschreibung
BR870150ClassicLine safety sign for safety showers, incl. fasteners for mounting on the shower arm (Plastic). 150 x 150 mm
BR870200Platform actuation for eye showers and safety showers, in addition to the standard actuation (steel, galvanised)
BR710860Flow monitor for eye showers, protection class IP 65, electrical connection via 1.5 m cable.
BR710860EXFlow switch for eye showers and safety showers, protection degree IP 65, electrical supply with 1.5 m cable. EX-Zone 1 & 2.
BR830400Switch for body safety shower, complete premounted on shower, for EX-Zones 1 & 2.
BR015800ClassicLine alarm systems with siren/flashlight combination. Pre-wired connection box. Relay circuit included.
BR830970Anti-scald valve, switching points: Open at 41°C, close at 35°C (stainless steel)
BR830980Frost protection valve, switching points: open at 1°C, close at 4°C (stainless steel)
BR830986Connection adapter 1 1/4-inch, T-piece, for the connection of the protection valves before the water connection of the safety shower (stainless steel)
BR830700Stainless steel collection tray with a GRP step grate, for eye showers and safety showers. Dimensions: 1100x1100x150 mm
BR830905Einhausung für Notduschen mit einem Rahmen aus Edelstahl und Seitenwänden aus Edelstahl. Abmessungen: 2450x1100x1100 mm
BR014114ANSI flange for eye showers and safety showers, B16.5, 150 LBS, form RF. Includes double nipple to 1 1/4-inch male.
BR016114DIN flange for eye showers and safety showers, PN 10, with extension. Including double nipple on 1 1/4-inch male thread.
