B-Safety BR082095

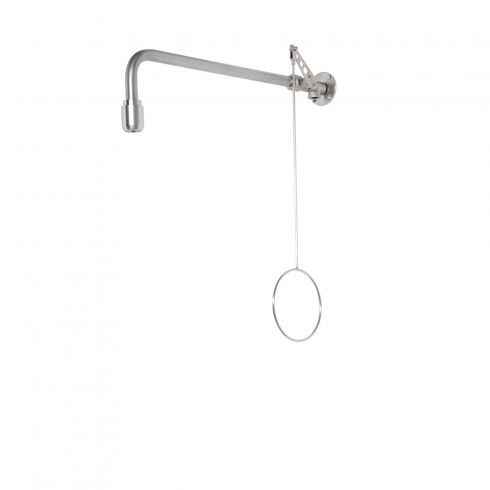

PremiumLine body safety shower in Stainless Steel, wall mount, surface mount

Cleanroom Stainless Steel Emergency Shower

The B-Safety PremiumLine body safety shower for wall mounting with flush-mounting offer immediate first aid for sudden accident situations, such as burns, scalds or burns to contain the injuries and damage. A body safety shower should always be installed in laboratories or near hazardous work areas.

The PremiumLine body safety shower from B-Safety is DIN-DVGW tested and approved.

Specification

  • Material:Stainless Steel
  • Surface: polished
  • Projection: 605 mm
  • Installation height: 2345 mm (± 100 mm)
  • Operating pressure: 1,5 bis 3 bar
  • Flow rate: 50 L/min
  • Water inlet: 3/4-inch female
  • Standards conformity: DIN EN 15154-1:2006, DIN EN 15154-5:2019, ANSI Z358.1-2014
  • Registrations: DIN-DVGW, NW-0416CL0425, GOST-R, Certificate No. 061563

Order information

Order noModel noDescription
BR082095BR082095B-Safety PremiumLine body safety shower in Stainless Steel, wall mount, surface mount

Accessories

Bestell Nr.Beschreibung
BR870150ClassicLine safety sign for safety showers, incl. fasteners for mounting on the shower arm (Plastic). 150 x 150 mm
BR082200ClassicLine cable actuation for injured persons lying on the ground, additional to pull rod. (Stainless steel rope)
BR082300ClassicLine disability friendly pull rod with double ring handle, green. Length: 1150 mm (Steel)
BR082350Handicapped accessible pull bar with double ring handle, stainless steel. Length: 1150 mm
BR830955Service shut-off for safety eye showers with removable release lever (stainless steel).
BR710950Thermostatic mixing valve for eye showers and safety showers, setting range 20 - 43°C, scald protection 43°C, volume flow approx. 60 l/min at 2 bar flow pressure.
BR710800Flow monitor for eye showers, protection class IP 65, electrical connection via 1.5 m cable.
BR830400Switch for body safety shower, complete premounted on shower, for EX-Zones 1 & 2.
BR015800ClassicLine alarm systems with siren/flashlight combination. Pre-wired connection box. Relay circuit included.
