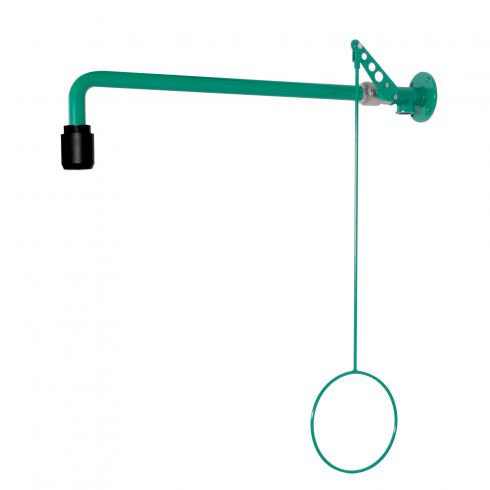

B-Safety BR082085
ClassicLine body safety shower, wall mount, surface mount

Emergency Shower

B-Safety ClassicLine wall-mounted surface-mounted body safety showers provide immediate first aid for sudden accident situations, such as burns, scalds or chemical burns, to contain injuries and damage. A body safety shower should always be installed in laboratories or near hazardous work areas.

The ClassicLine body safety shower from B-Safety is DIN-DVGW tested and approved.,

Specification

  • Material:Stainless Steel, plastic
  • Color: green, black
  • Projection: 605 mm
  • Installation height: 2345 mm (± 100 mm)
  • Operating pressure: 1,5 bis 3 bar
  • Flow rate: 50 L/min
  • Water inlet: 3/4-inch female
  • Standards conformity: DIN EN 15154-1:2006, DIN EN 15154-5:2019, ANSI Z358.1-2014
  • Registrations: DIN-DVGW, NW-0416CL0425, GOST-R, Certificate No. 061563

Order information

Order noModel noDescription
BR082085BR082085B-Safety ClassicLine body safety shower, wall mount, surface mount

Accessories

Bestell Nr.Beschreibung
BR870150ClassicLine safety sign for safety showers, incl. fasteners for mounting on the shower arm (Plastic). 150 x 150 mm
BR082200ClassicLine cable actuation for injured persons lying on the ground, additional to pull rod. (Stainless steel rope)
BR082300ClassicLine disability friendly pull rod with double ring handle, green. Length: 1150 mm (Steel)
BR082350Handicapped accessible pull bar with double ring handle, stainless steel. Length: 1150 mm
BR830955Service shut-off for safety eye showers with removable release lever (stainless steel).
BR710950Thermostatic mixing valve for eye showers and safety showers, setting range 20 - 43°C, scald protection 43°C, volume flow approx. 60 l/min at 2 bar flow pressure.
BR710800Flow monitor for eye showers, protection class IP 65, electrical connection via 1.5 m cable.
BR830400Switch for body safety shower, complete premounted on shower, for EX-Zones 1 & 2.
BR015800ClassicLine alarm systems with siren/flashlight combination. Pre-wired connection box. Relay circuit included.
