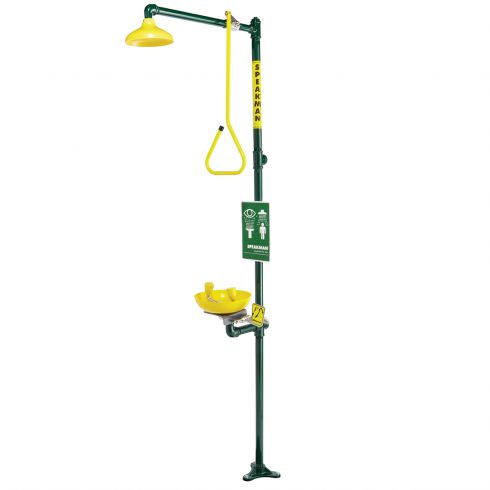

Speakman® SE-697
Traditional Emergency Shower & Eye Wash Combination

Product description Downloads Order info back
Speakman traditional series combination emergency stations provide the highest level of performance in times of need. All traditional series combination stations feature a high performance emergency shower head and a 1-1/4" DuraJade powder coated stanchion. The Speakman Traditional Series SE-697 Combination Emergency Station with Plastic Bowl Eyewash features a stay open ball valve, allowing hands free operation once the shower has been activated and an SE-580 eyewash. The high visibility yellow pull rod, makes finding the SE-697 easy in an emergency.

Specification

  • Two yellow plastic outlets
  • 300 series ABS bowl
  • ½” NPT female brass, chrome-plated ball valve
  • Stainless steel push handle activator
  • ½”NPT female inlet
  • 12L/min @ 2 bar
  • 8"diameter yellow plastic showerhead
  • Internal 50L/min regulator low control
  • 1” NPT female brass, chrome plated, full flow stay-open ball valve
  • Powder coated yellow aluminum triangular pull rod activator
  • 1½” galvanized steel piping stanchion and fittings
  • 1 ¼” NPT female inlet & waste
  • DuraJade™ owder-coated finish on stanchion for durability andenhanced corrosion resistance
  • 50L/min @ 2 bar
  • Universal emergency sign included
  • ANSI/ISEA Z358.1 certified
  • 3 Year Limited Warranty

Order information

Order noModel noDescription
SE-697SE-697Speakman® Traditional Emergency Shower & Eye Wash Combination

Optionen

Order noDescription
FPVFreeze protection valve
HFOHand and foot operation
HSSE-920 hand held drench hose
SCSVSelf-closing shower valve with chain and ring
SPRStainless steel pullrod
SPVScald protection valve
SSBV11" IPS stainless steel ball valve
SSBV2½" stainless steel ball valve
SSHStainless steal showerhead
