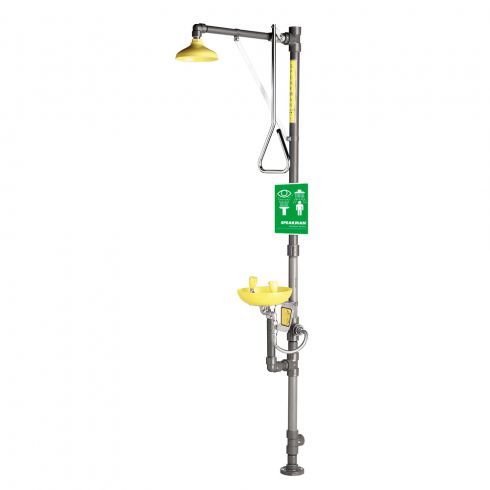

Speakman® SE-690-PVC
PVC Emergency Shower & Eye Wash

Product description Downloads Order info back
Speakman Traditional Series combination emergency stations provide the highest level of performance in times of need. The Speakman Traditional Series SE-690-PVC PVC Combination Emergency Shower & Eye/face Wash model features a stay open ball valve, allowing hands free operation once the shower has been activated and an SE-495 eye/face wash with plastic bowl. The unit is constructed with PVC piping. The high visibility yellow pull rod, makes finding the SE-690-PVC easy in an emergency.

Specification

  • Two yellow plastic outlets
  • ABS bowl
  • ½” NPT female 300 series stainless steel ball valve
  • Stainless steel push handle activator
  • ½”NPT female inlet
  • 17L/min @ 2 bar
  • 8"diameter yellow plastic showerhead
  • Internal 50L/min regulator flow ontrol
  • 1” NPT stainless steel full flow stay-open ball valve
  • Stainless steel triangular pull rod activation
  • 1½” schedule 80 PVC pipe stanchion and fittings
  • 1 ¼” NPT female inlet & waste
  • 50L/min @ 2 bar
  • Universal emergency sign included
  • ANSI/ISEA Z358.1 certified
  • 3 Year Limited Warranty

Order information

Order noModel noDescription
SE-690-PVCSE-690-PVCSpeakman® PVC Emergency Shower & Eye Wash

Optionen

Order noDescription
FLWFlow Switch single pole
FPVFreeze protection valve
HFOHand and foot operation
HSSE-920 hand held drench hose
SPVScald protection valve
SSHStainless steal showerhead
