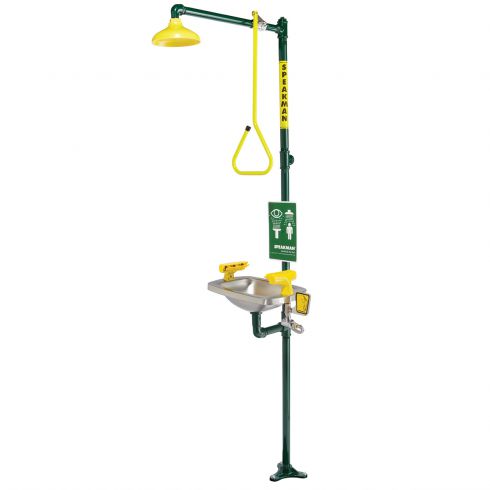

Speakman® SE-603
Emergency Combination Shower & Eye Wash

Speakman Select Series combination shower & eye/face wash units feature a combination eye/face wash with six aerated sprays and a rectangular bowl combined on a DuraJade powder coated galvanized steel stanchion with a high performance emergency shower head that is activated by a high visibility yellow pull rod. The Speakman Select Series SE-603 Emergency Combination Shower & Eye/face Wash is supplied with an SE-400 eye/face wash with stainless steel bowl.

Specification

  • Six brass chrome-plated aerated sprays
  • Yellow polypropylene shrouds
  • Brass, chrome-plated in-line strainer
  • Stainless steel bowl
  • ½ in. NPT female brass chrome plated valve
  • Stainless steel push handle activator
  • ½ in. NPT female inlet
  • 24l/min @ 2 bar
  • 8 in. diameter yellow plastic showerhead
  • Internal 50L/min regulator flow control
  • 1 in. NPT female brass, chrome plated full flow stay-open ball valve
  • Powder coated yellow, aluminum triangular pull rod activation
  • Stanchion is 1¼ in. galvanized steel piping and fittings
  • 1¼ in. NPT female waste & inlet
  • 50L/min @ 2 bar
  • Universal emergency sign included
  • ANSI/ISEA Z358.1 certified
  • 3 Year Limited Warranty

Order information

Order noModel noDescription
SE-603SE-603Speakman® Emergency Combination Shower & Eye Wash

Optionen

Order noDescription
FPVFreeze protection valve
HFOHand and foot operation
HSSE-920 hand held drench hose
SCSVSelf-closing shower valve with chain and ring
SPRStainless steel pullrod
SPVScald protection valve
SSBV11" IPS stainless steel ball valve
SSBV2½" stainless steel ball valve
SSHStainless steal showerhead
