Speakman® SE-575-DP-238
Laboratory & Cleanroom Emergency Shower and Eyewash

Product description Downloads Order info back

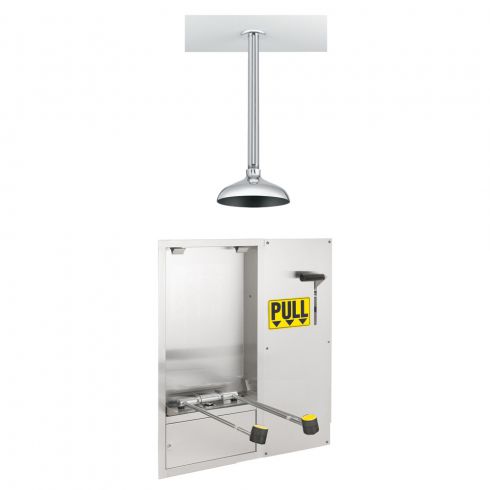

The Speakman SE-575-DP-238 Wall Mounted Swing Down Laboratory Eye/face wash & Emergency Shower is a wall mounted swing down activated unit in a recessed stainless steel cabinet with soft flow spray outlets. The SE-575-DP-238 features extended arms for wheelchair accessibility and includes a drain pan to capture & drain flushing fluid. The unit also includes a drop down high performance stainless steel emergency shower head with stainless steel access panel which activated when the handle is pulled down.

Specification

  • Wall-mounted fully recessed cabinet
  • 16 in. arm
  • Two aerated Optimus spray heads with integrated dust caps
  • Brass, chrome-plated valve
  • Swing activated
  • ½ in. NPT female inlet
  • Stainless Steel with satin finish cabinet
  • 6L/min @ 2 bar
  • Universal emergency sign included
  • 8 in. flanged stainless steel shower head
  • High performance stainless steel emergency shower head
  • Built in drain allows head to drain completely
  • Integral flow controls
  • 1 in. NPT female brass, hrome plated valve
  • Full flow stay-open ball valve
  • 1 in. IPS steel pipe nipple and union connections
  • 1 in. NPTF inlet
  • Stainless steel lever with black plastic rotating handle activator
  • ANSI/ISEA Z358.1 certified
  • 3 Year Limited Warranty

Order information

Order noModel noDescription
SE-575-DP-238SE-575-DP-238Speakman® Laboratory & Cleanroom Emergency Shower and Eyewash
