B-Safety BR871095

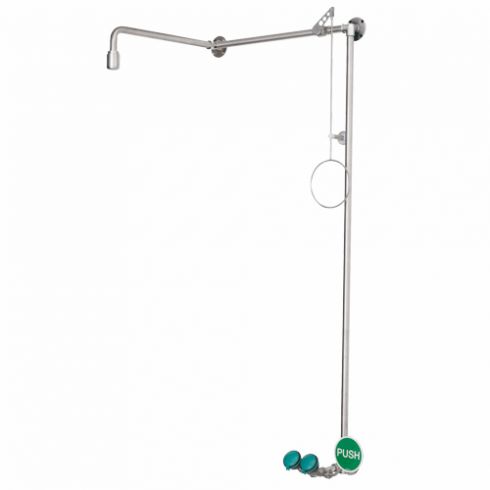

PremiumLine Saftey Shower with Eyewash with two spray heads 45° in Stainless Steel, above door installation

Product description Downloads Order info back

Cleanroom Stainless Steel Emergency Shower Combination

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as they are for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely free of limescale and maintenance, and very robust and corrosion-resistant. The limited, uniform and, above all, soft water jet is optimized for rinsing off chemicals on the skin.

Specification

  • Material:Stainless Steel
  • Surface: polished
  • Total height: 1625 mm
  • Projection: 630 mm
  • Installation height: 810 mm
  • Operating pressure: 1,5 bis 3 bar
  • Flow rate: 50 litre per min.
  • Water inlet: 3/4-inch female
  • Standards conformity: DIN EN 15154-1:2006, DIN EN 15154-2:2006, DIN EN 15154-5:2019, ANSI Z358.1-2014
  • Registrations: DIN-DVGW, NW-0416CL0425, NW-0416CL0263, GOST-R, Certificate No. 0615463

Order information

Order noModel noDescription
BR871095BR871095B-Safety PremiumLine Saftey Shower with Eyewash with two spray heads 45° in Stainless Steel, above door installation

Accessories

Bestell Nr.Beschreibung
BR870100Hinweisschild "Augendusche und Notdusche". Inklusive Befestigungsmaterial zur Montage auf dem Notduscharm. Abmessungen: 320 x 180 mm
BR082200ClassicLine cable actuation for injured persons lying on the ground, additional to pull rod. (Stainless steel rope)
BR082300ClassicLine disability friendly pull rod with double ring handle, green. Length: 1150 mm (Steel)
BR082350Handicapped accessible pull bar with double ring handle, stainless steel. Length: 1150 mm
BR870310Foot lever actuation for eye showers and safety showers, wall mounted. Inclusive fixing material for wall mounting of the spring (stainless steel)
BR830955Service shut-off for safety eye showers with removable release lever (stainless steel).
BR710950Thermostatic mixing valve for eye showers and safety showers, setting range 20 - 43°C, scald protection 43°C, volume flow approx. 60 l/min at 2 bar flow pressure.
BR710800Flow monitor for eye showers, protection class IP 65, electrical connection via 1.5 m cable.
BR710800EXFlow monitor for eye showers, protection class IP 65, electrical connection via 1.5 m cable. EX-Zone 1 & 2
BR830400Switch for body safety shower, complete premounted on shower, for EX-Zones 1 & 2.
BR830450Emergency sensor for eye showers, completely pre-mounted on the shower, for EX zones 1 & 2.
BR015800ClassicLine alarm systems with siren/flashlight combination. Pre-wired connection box. Relay circuit included.
