B-Safety BR867085
ClassicLine hand-held eye shower with two spray heads 45°, wall-/table mount

Product description Downloads Order info back

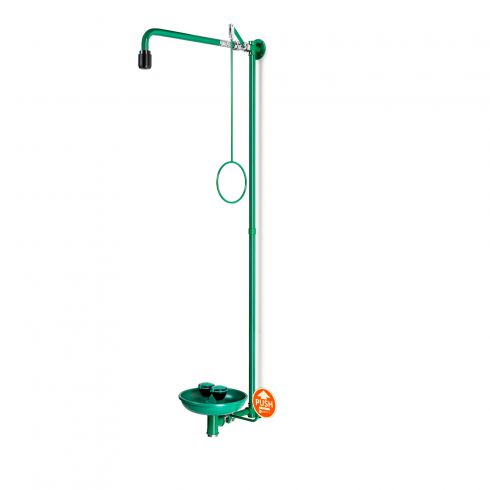

Emergency Shower Combination

The B-Safety ClassicLine body safety shower with eye shower for wall mounting provide immediate first aid for sudden accident situations such as burns, scalds or burns to contain the injuries and damage. A body safety shower should always be installed in laboratories or near hazardous work areas.

The ClassicLine body safety shower from B-Safety is DIN-DVGW tested and approved.

Specification

  • Material:Stainless Steel, plastic
  • Color: green, black
  • Total height: 1625 mm
  • Projection: 630 mm
  • Installation height: 810 mm
  • Operating pressure: 1,5 bis 3 bar
  • Flow rate: 50 litre per min.
  • Water inlet: 3/4-inch female
  • Standards conformity: DIN EN 15154-1:2006, DIN EN 15154-2:2006, DIN EN 15154-5:2019, ANSI Z358.1-2014
  • Registrations: DIN-DVGW, NW-0416CL0425, NW-0416CL0263, GOST-R, Certificate No. 0615463

Order information

Order noModel noDescription
BR867085BR867085B-Safety ClassicLine hand-held eye shower with two spray heads 45°, wall-/table mount

Accessories

Bestell Nr.Beschreibung
BR870100Hinweisschild "Augendusche und Notdusche". Inklusive Befestigungsmaterial zur Montage auf dem Notduscharm. Abmessungen: 320 x 180 mm
BR082200ClassicLine cable actuation for injured persons lying on the ground, additional to pull rod. (Stainless steel rope)
BR082300ClassicLine disability friendly pull rod with double ring handle, green. Length: 1150 mm (Steel)
BR082350Handicapped accessible pull bar with double ring handle, stainless steel. Length: 1150 mm
BR870310Foot lever actuation for eye showers and safety showers, wall mounted. Inclusive fixing material for wall mounting of the spring (stainless steel)
BR830955Service shut-off for safety eye showers with removable release lever (stainless steel).
BR710950Thermostatic mixing valve for eye showers and safety showers, setting range 20 - 43°C, scald protection 43°C, volume flow approx. 60 l/min at 2 bar flow pressure.
BR710800Flow monitor for eye showers, protection class IP 65, electrical connection via 1.5 m cable.
BR710800EXFlow monitor for eye showers, protection class IP 65, electrical connection via 1.5 m cable. EX-Zone 1 & 2
BR830400Switch for body safety shower, complete premounted on shower, for EX-Zones 1 & 2.
BR830450Emergency sensor for eye showers, completely pre-mounted on the shower, for EX zones 1 & 2.
BR015800ClassicLine alarm systems with siren/flashlight combination. Pre-wired connection box. Relay circuit included.
