B-Safety BR838085

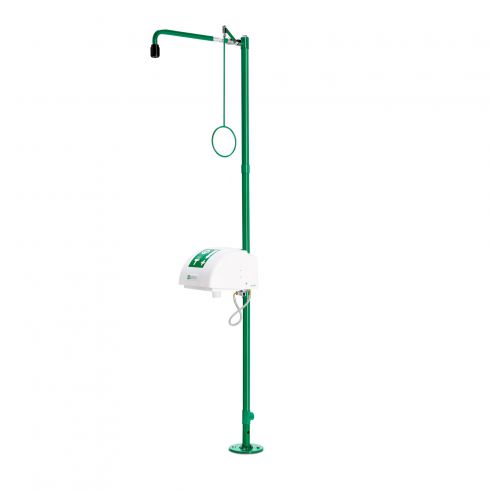

ClassicLine body safety shower with eye shower with bowl and lid, floor mount

Emergency Shower Combination

The B-SAFETY ClassicLine series of body safety showers are made of high-quality materials and are just as suitable for use in laboratories and research as they are for harsh industrial applications. B-SAFETY's green chemical-resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only complies with ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely free of limescale and maintenance, and very robust and corrosion-resistant. The limited, uniform and, above all, soft water jet is optimized for rinsing off chemicals on the skin.

Specification

  • Material:Stainless Steel, plastic
  • Color: green, black
  • Total height: 2330 mm
  • Projection: 630 mm
  • Operating pressure: 1,5 bis 3 bar
  • Flow rate: 50 litre per min.
  • Water inlet: 1 1/4-inch female
  • Standards conformity: DIN EN 15154-1:2006, DIN EN 15154-2:2006, DIN EN 15154-5:2019, ANSI Z358.1-2014
  • Registrations: DIN-DVGW, NW-0416CL0425, NW-0416CL0263, GOST-R, Certificate No. 0615463

Order information

Order noModel noDescription
BR838085BR838085B-Safety ClassicLine body safety shower with eye shower with bowl and lid, floor mount

Accessories

Bestell Nr.Beschreibung
BR870100Hinweisschild "Augendusche und Notdusche". Inklusive Befestigungsmaterial zur Montage auf dem Notduscharm. Abmessungen: 320 x 180 mm
BR870200Platform actuation for eye showers and safety showers, in addition to the standard actuation (steel, galvanised)
BR870205Platform actuation for eye showers and safety showers, in addition to the standard actuation (stainless steel)
BR710950Thermostatic mixing valve for eye showers and safety showers, setting range 20 - 43°C, scald protection 43°C, volume flow approx. 60 l/min at 2 bar flow pressure.
BR710860Flow monitor for eye showers, protection class IP 65, electrical connection via 1.5 m cable.
BR710860EXFlow switch for eye showers and safety showers, protection degree IP 65, electrical supply with 1.5 m cable. EX-Zone 1 & 2.
BR830400Switch for body safety shower, complete premounted on shower, for EX-Zones 1 & 2.
BR830450Emergency sensor for eye showers, completely pre-mounted on the shower, for EX zones 1 & 2.
BR015800ClassicLine alarm systems with siren/flashlight combination. Pre-wired connection box. Relay circuit included.
BR830970Anti-scald valve, switching points: Open at 41°C, close at 35°C (stainless steel)
BR830980Frost protection valve, switching points: open at 1°C, close at 4°C (stainless steel)
