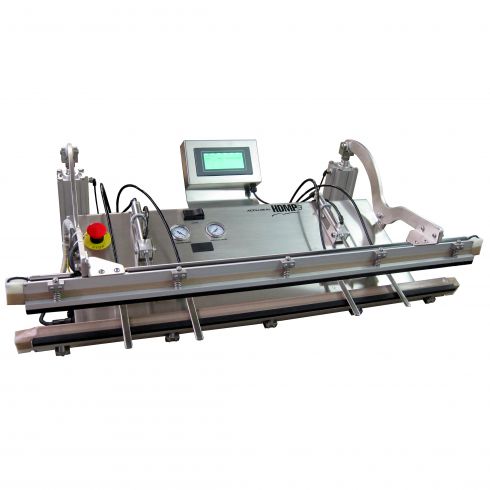

Accu-Seal Model HDMP3TC-GV
Cleanroom Gas-Vacuum Heat Sealer, temperature-controlled

Product description Technical specifications Downloads Order info back

Gas-Vacuum Heat Sealer Ideal for Medical and Pharmaceutical Packaging

The temperature controlled, high performance multi-purpose vacuum sealer is designed to handle large objects and the toughest materials for medical and pharmaceutical packaging. Product features such as full process control and seal length up to 50" in compliance with all GMP cleanroom, GMP laboratory and GMP pharmaceutical specifications are a standard for this model. These film sealers are verifiable and calibratable to ISO 11607 standards. The user-friendly LCD touch screen and high-speed PLC provide assurance that all process parameters are being met. Connections for external verification allows easy calibration.

Specification

  • Gas -Vacuum-Seal
  • Temperature Controlled
  • Validatable

Technical specifications

Seal Width3/8 Inch
Requirements2,6 m³/h @ 5,5 bar (seal only)

Order information

Order no Model No. Seal Method Seal Length Size (LxWxH) pcs.
808-7044 XHDMP3TC-4B6GV Gas-Vacuum Seal, dual heat, , temperature controlled 762 mm 864x460x355mm
808-7041 XHDMP3TC-5B6GV Gas-Vacuum Seal, dual heat, , temperature controlled 890 mm 990x460x355mm
808-7050 XHDMP3TC-6B6GV Gas-Vacuum Seal, dual heat, , temperature controlled 1020 mm 1120x460x355mm
808-7020 XHDMP3TC-7B6GV Gas-Vacuum Seal, dual heat, , temperature controlled 1270 mm 1370x460x355mm

Accessories

Bestell Nr.Beschreibung
620-0033External Exhaust Silencer- 3/8" Tubing
HTHigh Temperature Option (up to 650 F)
620-0022Moisture/Particle Vacuum Filter- Large Body Std (3/8")
620-0023Moisture/Particle Vacuum Filter- Large Body Vert (3/8")
620-0103Large, High Flow Vacuum Filter, 3/8" Horitz (Lg Body- set of 2)
620-0032Exhaust Silencer- 1/2" (ea)- Requires 2 for Large Body
620-0130Large, High Flow Vacuum Filter, 3/8" Vert (Lg Body- set of 2)
620-0059Vacuum Limiter- Large Body
604-0035Vac Nozzle & Cyl Shut Off Valve Assy for 1/nozzle set
613-0036Single Nozzle Set Option- Large Body only
613-0037High Flow Single Nozzle Set Option- Large Body only
613-0011High Flow Option per Noz Set
613-0013High Flow Option for 2 Noz sets
613-0019High Flown Long Nozzles per Noz set
613-0009High Flow Long Nozzles for 2 Noz sets
620-0099Water Trap Filter Assy- 3/8" Fittings
