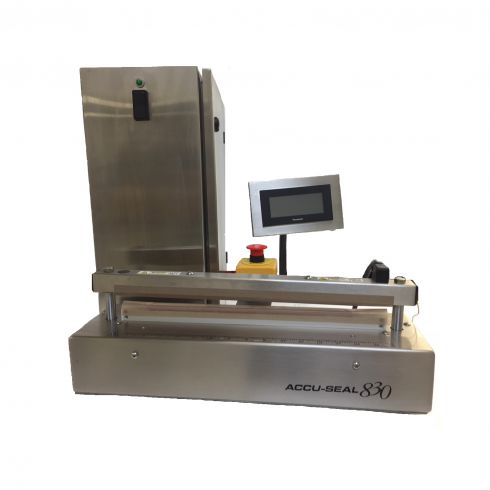

Accu-Seal Model 830
Cleanroom Impulse Heat Sealer, remote-controlled

Flexible Validatable and Verifiable Cleanroom Film Sealer

The Model 830 validatable impulse sealer with remote sealing head provides the flexibility of a heat sealing station within an LAF safety cabinet. Features include a remote sealing head, control cabinet and touch screen that provide fully digital process control for temperature, time and pressure. Password-protected process parameters and visual and audible alarms for process errors are standard safety options. The 830 Heat Sealer stores 50 programs for the sealing process and is fully validatable and verifiable for IQ, OQ, PQ. Meets CE 11607 requirements.

Specification

  • LCD Touch Screen and PLC
  • Seamless Stainless Steel Case
  • External Calibration Verification
  • Visible and Audible Alarms
  • Remote LCD Head
  • Temperature Controlled
  • Validatable

Technical specifications

Seal Width3/8 Inch
Requirements1,7 m³/h @ 5,5 bar

Order information

Order no Model No. Seal Method Seal Length Size (LxWxH) pcs.
823-0035 830-15-BX Seal only, upper heat 380 mm 520x125x170mm
823-0036 830-20-BX Seal only, upper heat 508 mm 650x125x170mm
823-0037 830-25-BX Seal only, upper heat 635 mm 770x125x170mm
823-0040 830-15(11)-BX-DH Seal only, dual heat 200 mm 520x125x170mm
823-0041 830-20(16)-BX-DH Seal only, dual heat 406,4 mm 650x125x170mm

Accessories

Bestell Nr.Beschreibung
624-0033Data Acquisition System - RedLion Module (AFPX)
HTHigh Temperature Option (up to 650 F)
