Accu-Seal Model 675TC2-GV
Cleanroom SmartVAC Vac/Gas Sealer, temperature controlled

Product description Technical specifications Downloads Order info back

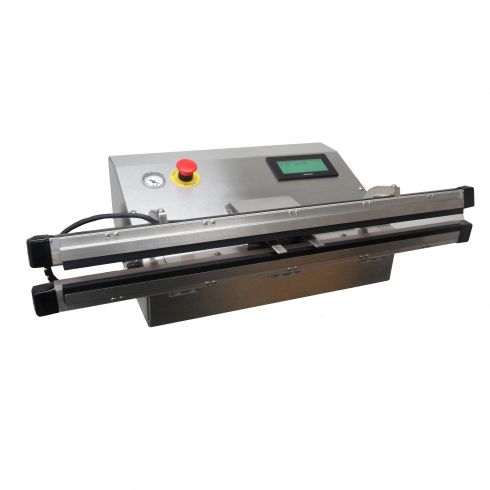

Innovative Gas-Vacuum Sealer with Temperature Control

The Model 675TC-GV temperature-controlled vacuum sealer with gas purge provides complete process control for medical, pharmaceutical and laboratory GMP compliant packaging. Built-in features provide flexibility, protection and performance. To further increase production, the machine comes already with a dual heat option. The vacuum sealer can be easily mounted on an ergonomic machine stand or placed on a tabletop.

Specification

  • Model 675TC-GV with temperature control and upper heat only
  • Model 675TC with temperature control and dual heat upper & lower
  • Validatable

Technical specifications

Seal Width3/8 Inch
Vacuum PressureMax. 0,88 bar
Compressed Air-Pressure4,25 m³/h @ 6,2 bar

Order information

Order no Modell No. Seal Method Seal Length Size (LxWxH) pcs.
853-0113 675TC-20-DBX Gas Vacuum 500mm 660x400x230mm
853-0114 675TC2-25-DBX Gas Vacuum 640mm 740x400x230mm
853-0115 675TC-30-DBX Gas Vacuum 740mm 865x400x230mm

Accessories

Bestell Nr.Beschreibung
511-0048Support Tray- Stainless Steel
624-0050Data Acquisition System - RedLion Module (AFP0R)
624-0033Data Acquisition System - RedLion Module (AFPX)
624-0032Data Acquisitation System (DASL)
620-0033External Exhaust Silencer- 3/8" Tubing
HTHigh Temperature Option (up to 650 F)
620-0058Moisture/Particle Vacuum Filter- 1/4"
620-0089Moisture/Particle Vacuum Filter- 3/8" (for high flow option)
620-0031Vacuum Limiter- Small Body
620-0106High Flow Option
620-0099Water Trap Filter Assy- 3/8" Fittings
613-0041Single Nozzle Configuration
