Accu-Seal Model 675 smartVAC2
Cleanroom SmartVAC2 Vac Sealer

Product description Technical specifications Downloads Order info back

Vacuum Film Sealer Ideal for Semiconductors

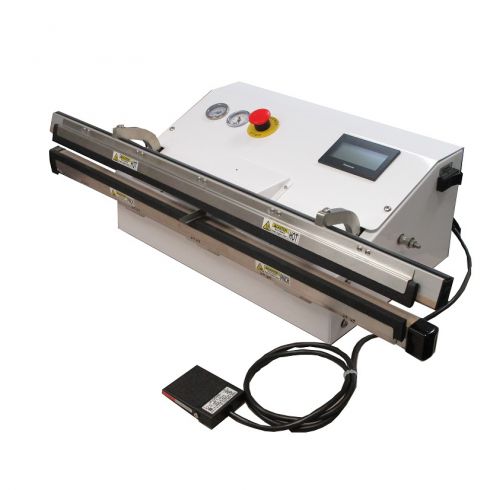

The smartVAC2 vacuum sealer series is ideal for packaging and sealing moisture and oxygen sensitive cleanroom products such as microelectronics, semiconductors as well as industrial and consumer goods. The open sealing bars and retractable vacuum nozzles increase production speed. Standard features include low-pressure jaw closing and emergency stop switch. The smartVACuum Sealer is designed for use on a tabletop or stand and is available with a stainless steel product tray.

Specification

  • Impulse Heat
  • Budget Sealer
  • Electric Foot Pedal Operation
  • Powder Coated Stainless Steel Enclosure
  • Tabletop or Stand Mount
  • Horizontal to Vertical Seal Orientation
  • Moisture and Oxygen Sensitive Product Applications

Technical specifications

Seal Width1/4 and 3/8 Inch
Vacuum PressureMax. 0,88 bar
Compressed Air-Pressure4,25 m³/h @ 6,2 bar

Order information

Order no Model No. Seal Method Seal Length / Width Size (LxWxH) pcs.
852-4006 675V2-20-3X Vacuum Seal Only 508 mm 660,4x406,4x228,6mm
852-4007 675V2-25-3X Vacuum Seal Only 635mm 740x400x230mm
852-4008 675V2-30-3X Vacuum Seal Only 750 / 6,4 mm 865x400x230mm
852-4206 675M2-20-3X Gas-Vacuum 500 / 6,4 mm 610x400x230mm
852-4207 675M2-25-3X Gas-Vacuum 635 / 6,4 mm 740x400x230mm
852-4208 675M2-30-3X Gas-Vacuum 750 / 6,4 mm 865x400x230mm

Accessories

Bestell Nr.Beschreibung
511-0045Support Tray- White Powder Coated
908-500110 Recipe Option
620-0058Moisture/Particle Vacuum Filter- 1/4"
620-0089Moisture/Particle Vacuum Filter- 3/8" (for high flow option)
620-0099Water Trap Filter Assy- 3/8" Fittings
620-0033External Exhaust Silencer- 3/8" Tubing
613-0017Dual Nozzles
620-0106High Flow Option
620-0141Digital Vacuum Control Switch with Vac Flow Regulator
620-0031Vacuum Limiter- Small Body
