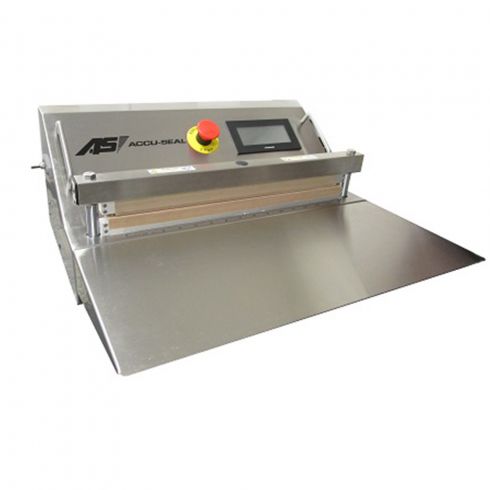

Accu-Seal Model 6300SP
Cleanroom Impulse Heat Sealer

Product description Technical specifications Downloads Order info back

Validatable and Calibratable Cleanroom Sealer

The 6300SP impulse heat sealer series is 100% validatable and calibratable across all sealing parameters and meets ISO 11607 CE compliance. The fully interlocked, protected, alarmed digital process and high speed control with LCD touch screen HMI provide assurance that all seal process parameters such as temperature, time and pressure are consistently maintained. This sealer is designed to meet GMP cleanroom, medical and pharmaceutical packaging requirements for sealing a variety of pre-made pouch materials.
Connections for external verification allows easy calibration.

Specification

  • LCD Touch Screen and PLC
  • Seamless Stainless Steel Case
  • External Calibration Verification
  • Visible and Audible Alarms
  • Temperature Controlled
  • Validatable

Technical specifications

Seal Width3/8 Inch
Requirements1,7 m³/h @ 5,5 bar

Order information

Order no Model No. Seal Method Seal Length Size (LxWxH) pcs.
809-0064 6300SP-15-BX Seal only, upper heat only 380 mm 530x255x200mm
809-0065 6300SP-20-BX Seal only, upper heat only 510 mm 660x255x200mm
809-0066 6300SP-25-BX Seal only, upper heat only 640 mm 790x255x200mm
809-0067 6300SP-30-BX Seal only, upper heat only 760 mm 910x255x200mm
809-0074 6300SP-15-BX-DH Seal only, dual heat 380 mm 530x255x200mm
809-0075 6300SP-20-BX-DH Seal only, dual heat 510 mm 660x255x200mm
809-0076 6300SP-25-BX-DH Seal only, dual heat 640 mm 790x255x200mm
809-0077 6300SP-30-BX-DH Seal only, dual heat 760 mm 910x255x200mm

Accessories

Bestell Nr.Beschreibung
624-0050Data Acquisition System - RedLion Module (AFP0R)
624-0032Data Acquisitation System (DASL)
HTHigh Temperature Option (up to 650 F)
619-0048Seal Bar Guard for 15"
619-0049Seal Bar Guard for 20"
619-0050Seal Bar Guard for 25"
619-0051Seal Bar Guard for 30"
